Shampoo production equipment

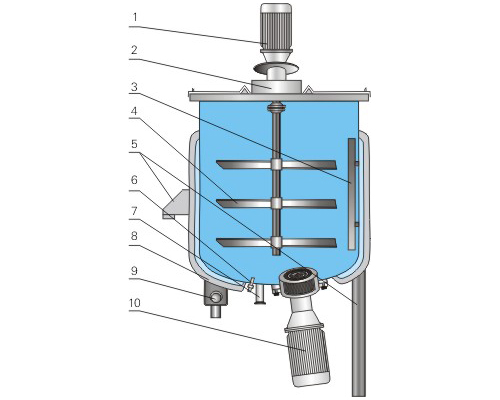

The shampoo pot is the main equipment in the shampoo production line. It consists of an inner tank, a spacer for steam and cooling water, an outer insulation layer for the spacer, a speed-adjusting stirring device, a temperature measuring device, and a feeding and discharging device. The inner tank and outer shell are made of stainless steel.
| Type | SH-500 | SH-1000 | SH-2000 |
| Specifications(L) | 500 | 1000 | 2000 |
Inner container dimensions(Diameter X height(mm) | ф880×1060 | ф1100×1280 | ф1400×1500 |
| Jacket thickness(mm) | 40 | 50 | 50 |
| Jacket pressure(MPa) | ≤0.2 | ≤0.2 | ≤0.2 |
| Pressure in the pot(MPa) | normal pressure | normal pressure | normal pressure |
| Insulation layer thickness(mm) | 30 | 50 | 50 |
| Power supply | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Speed-adjusting motor power(kw) | 1.5 | 3.5 | 7.5 |
| Rotation(rpm) | 10-400 | 10- 400 | 10-400 |
